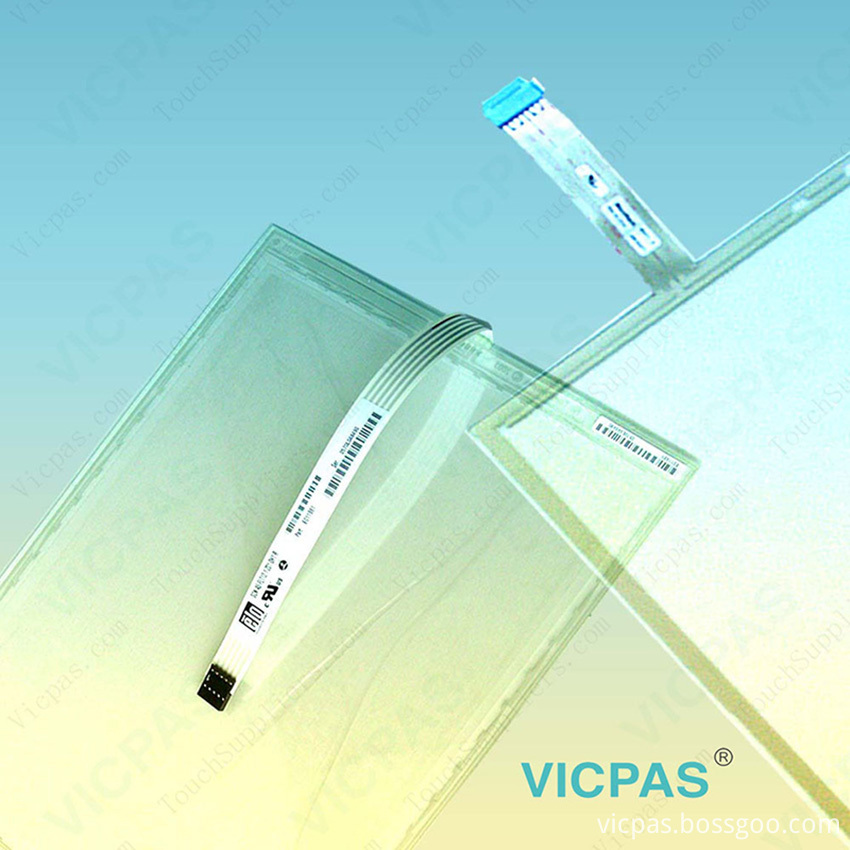

TP-048M-09 UN touch screen

TP-048M-09 UN Touch Screen
TP-048M-09 UN touch panel
TP-048M-09 UN touch membrane
TP-048M-09 UN touch glass
TP-048M-09 UN touch digitizer TP-048M-09 UN HMI Touch Glass TP-048M-09 UN Touchscreen TP-048M-09 UN touch assemble TP-048M-09 UN touch front TP-048M-09 UN touch interface TP-048M-09 UN touch cover TP-048M-09 UN protective film TP-048M-09 UN overlay label TP-048M-09 UN front foil


vicpas touch membrane

* Size
General Size 3.0'' to 22''
Custom Size 1.0''to 22''
Fit in with Panel display device
* Performance
Resolution(Interpolation) 4096*4096
Linearity Error <1.5%
Response Speed <10ms
* Mechanical
Input Method Finger or gloved hand (rubber, cloth or leather)
Touch Times More than 1 million touches
Touch Activation Force 20~80g
Surface Durability Meets pencil hardness 3H (per ASTM D3363)
* Optical
Light Transmission 80%(Meet ASTM D1003)
* Environmental
Temperature Operating Range: -10° C ~ 60° C
Storage Range: -20° C ~ 70° C
Relative Humidity Operating Range: 0%~90% RH (no dew falls)
Storage Range: 0% to 95% RH (no dew falls)
Altitude Up to 3, 000m
* Electrical
Operation Voltage Typical +DC 5V
Power Supply USB or RS232
Interface Full Duplex USB 2.0 (Full Speed) Plug and play compatible
Serial RS-232.
Current 5mA~25mA
Electrostatic Endurance No abnormal appearance after 10kv, 100Ω , 250PF electrostatic used
Isolation Resistance >20MΩ @ DC 25V
Resistance 300Ω < X Axis <900Ω , 200Ω < Y Axis <800Ω (Varies with different size)
Agency Approvals CE, FCC, RoHS
Operation System Linux/ DOS / Windows ME/95/98 / NT4.0/XP/2000/Mac OS



If you are interested in TP-048M-09 UN touch screen, please contact us for further information without hesitate.We will reply you as soon as we receive your inquiry.

We are saleing Touch Screen For Beijer,provides the product information.
Touch screen for Beijer are widely used for medical and industrial equipment, research shows, machinery equipment, industrial control, man-machine interface, industrial automation integrated workstation, POS, CNC etc. we have a lot of Touch screen for Beijer, standing some of our inventory stock.

Touch screen for Beijer

Touch Screen For Beijer,Touch Screen For Beijer Replacement,Touch Panel For Beijer
