In many people's eyes, the game has superb performance, but body thickness and weight are a hurdle, so the game seems to have to be a professional player to have the equipment, and the game's light players, those heavy The game can only be a long way off, but in terms of pursuing performance and comprehensive indicators, the game is not as scary as we thought. After all, there are also some thin and light game books, such as the HP Shadow Wizard series of notebooks, both in performance and appearance. Portability and other aspects have a very good performance, since its listing, it has become the preferred gaming notebook for many players.
Now ushered in the Hewlett-Packard WASD Shadow Elf II generation of game books, some of the details have also been optimized and adjusted, such as canceled the optical drive, the battery is built, the new digital printing process A surface design, carbon fiber texture design, etc., have greatly improved the operation Experience. About this Hewlett-Packard WASD Shadow Elf II generation of the game evaluation article can refer to "Easy to resist the HP Shadow Wizard II generation game evaluation", this article we mainly take a look at the inside of this game, that is, dismantling, let us Let's take a look at the beauty of the Hewlett-Packard WASD Shadow Elf II game in the workmanship of science and technology, as well as in-depth understanding of its motherboard, CPU, graphics, hard drives, memory, and cooling system for the game most need to consider, in the Shadow Elf II What kind of performance did the game actually have?
Hewlett-Packard WASD Shadow Elf II Generation Game Appearance and Changes

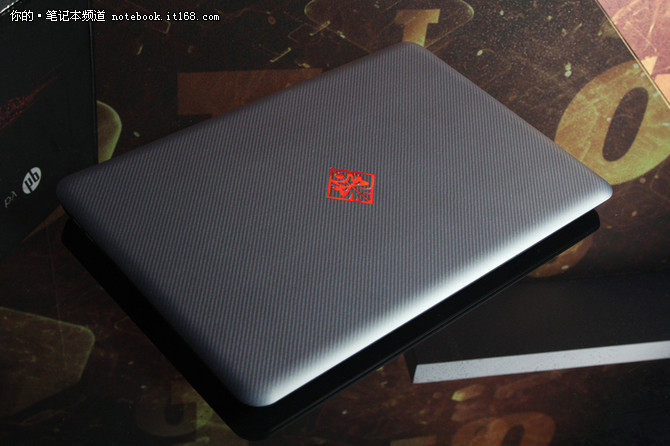

HP Shadow Elf Wizard II Game This
Hewlett-Packard WASD Shadow Elf II generation game this classic design shape, angular and mellow without losing personality. The body surface is using a new digital inkjet technology, carbon fiber texture design texture, feels very comfortable.

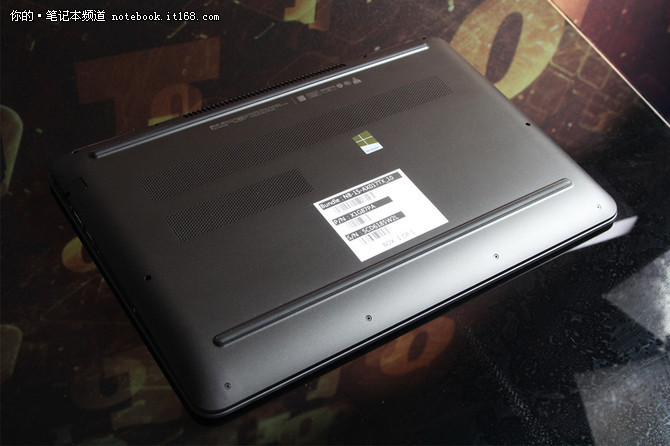

The Hewlett-Packard WASD Shadow Elf II generation game book canceled the drive, making the notebook look more concise overall. The bottom is a whole panel, the battery is built in, and the overall highlight is concise. Two rubber anti-slip strips are slightly raised, and the bottom supports also act as a vent. At the same time, Shadow Elf II generation games will have an outlet and increase the outlet area. Dual fan + dual brass + heat sink, can play a good role in heat dissipation, and the rear outlet allows the operator to barely feel the heat from the body.
HP WASD Shadow Elf II Generation Game Back

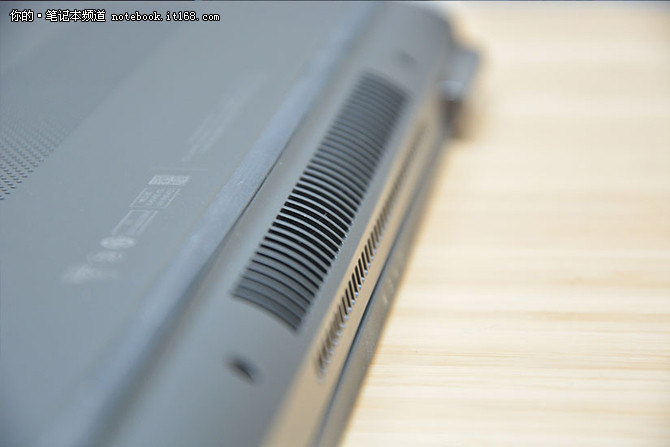

Hewlett-Packard WASD Shadow Elf II generation game behind the cooling window
If you have ever seen the previous generation of Hewlett-Packard's WASD Shadow Elf game, it may be the first impression that the C area, the quiet area of ​​the keyboard area, in this generation also changed to red.
Hewlett-Packard WASD Shadow Elf game book in the green background

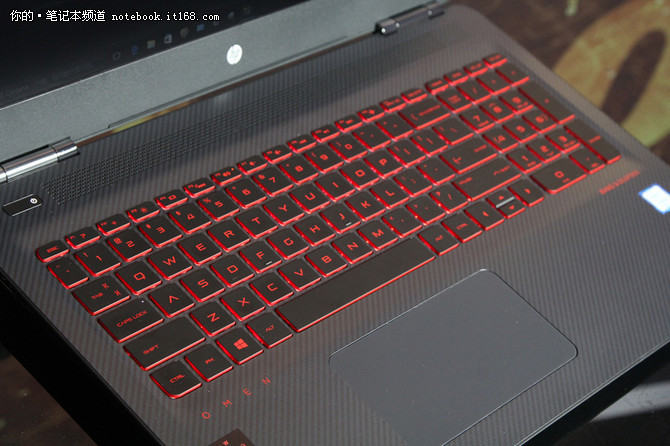

Hewlett-Packard WASD Shadow Elf II Generation Game Book With Red Keyboard Background
Jingdong Mall to buy, HP WASD Shadow Elf II
Hewlett-Packard WASD Shadow Elf II generation game with this dismantling and internal details
Because the bottom of this notebook is an entire panel, it is actually much simpler to dismantle. Just unscrew a week's screws, then use a crowbar to gently open from the back of the gap, you can open the back panel.

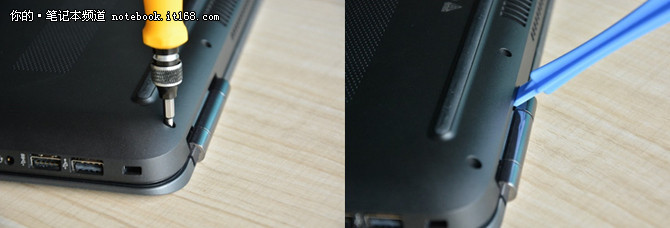

Dismantling mainly used Phillips screwdriver and crowbar

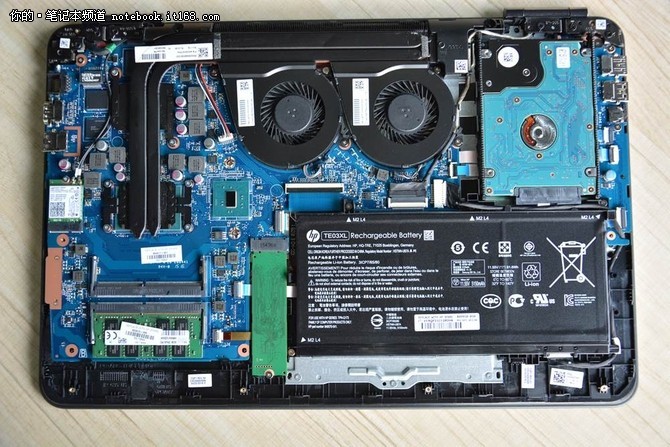

The HP WASD Shadow Elves II generation game board has a blue board, and the processor, graphics card, memory, and memory are all centralized on the main board. The right small board is the interface board. In addition to the main board, inside the entire machine, the largest footprint is the battery and dual fan cooling system.

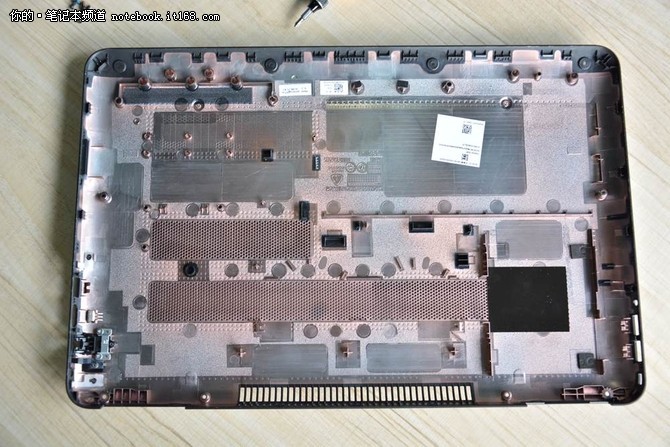

Rear panel

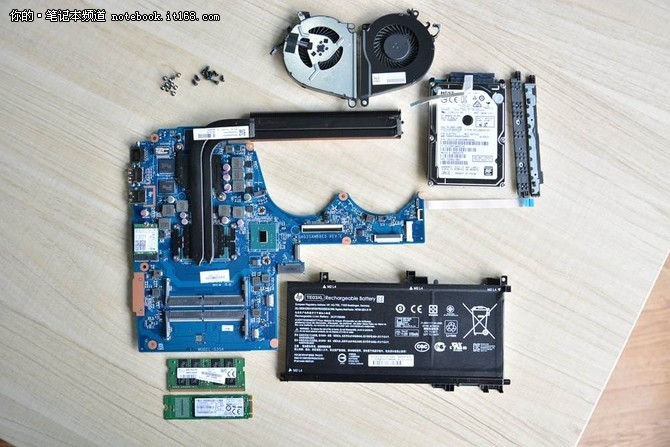

Internal list

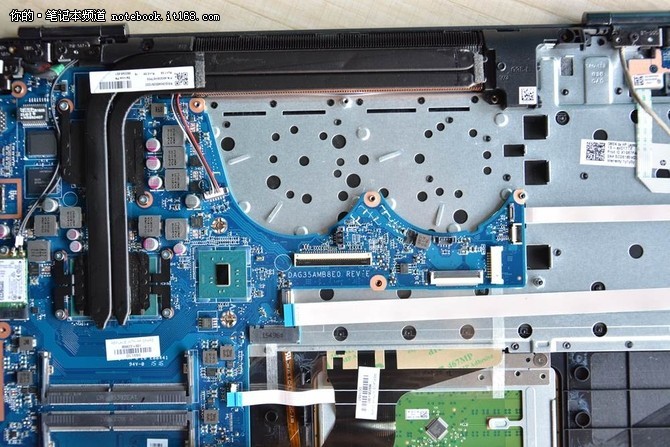

After opening the back cover, in fact, we are looking forward to the layout of the internal parts and cables. It can be seen that the Hewlett-Packard WASD Shadow Elves II generation game book is very clean and tidy. The connection cable uses more cables and has hidden battery and machinery. Under the hard disk, the layout of the battery, fan, monitor, and Wi-Fi cable is well controlled. The length is appropriate and the location is reasonable. It is easy to disassemble and easy to install. This brings a lot of dismantling. Convenient.
After the dismantling is completed, you can see that there are few internal connecting lines and it is very neat.
In the dismantling process, there is a detail that feels better, that is, there are fewer specifications and fewer screws. Basically, there are two types of specifications on the back shell, both black and internal, both white. Compared to previous dismantling of other brands, several types of screws are much better, often with installation errors, and even a few more after installation. But in Hewlett-Packard's machine, basically do not need to remember, it is very easy to complete.
Next we continue to talk about motherboards and accessories.

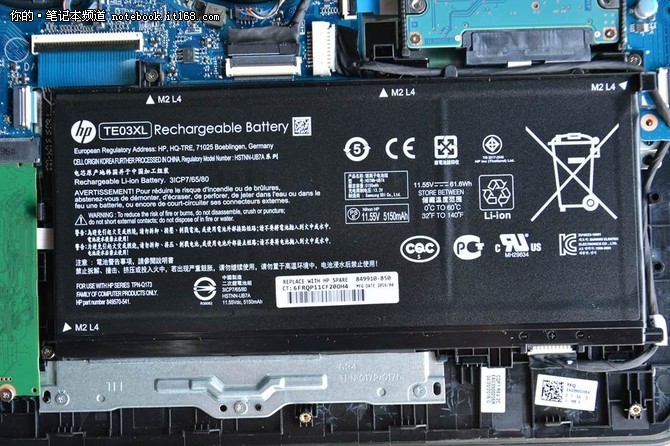

battery

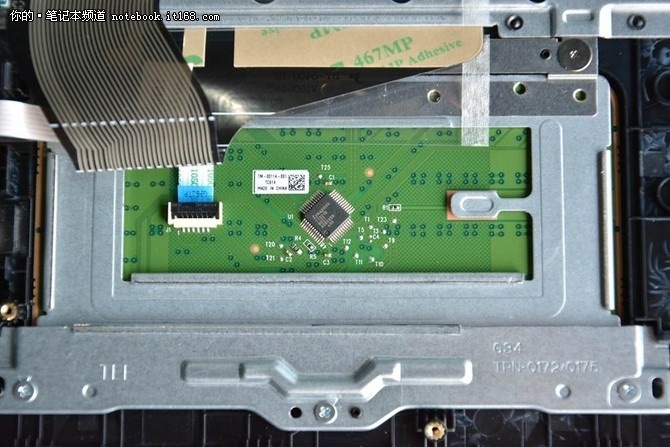

Battery under the cable and trackpad circuit
When dismantling other accessories, remove the battery first. The Hewlett-Packard WASD Shadow Elves II generation game uses a built-in battery to make the appearance look more tidy. The battery's input voltage is 11.55V and its capacity is 5150mAh.

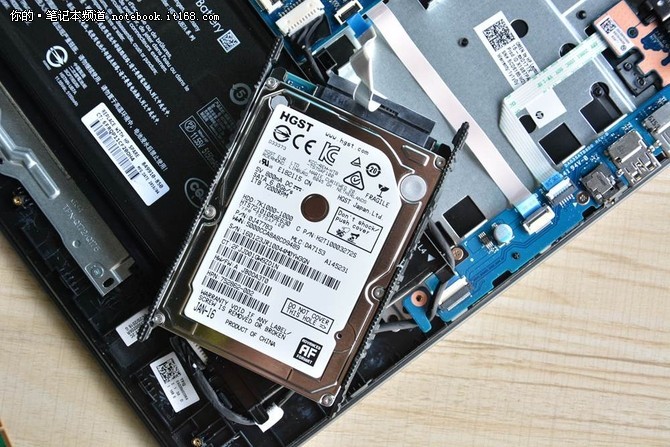

Mechanical hard disk
Hewlett-Packard WASD Shadow Elf II generation games use 128GB SSD combination of 1TB mechanical hard disk + M.2 interface to ensure the smooth running of the system and applications, 1TB of storage space is also suitable for the game's file storage, if it is still not enough It is also very convenient to replace and upgrade yourself. Two memory slots, a single 8GB, are also currently higher configurations.
Continue to check the internal details.

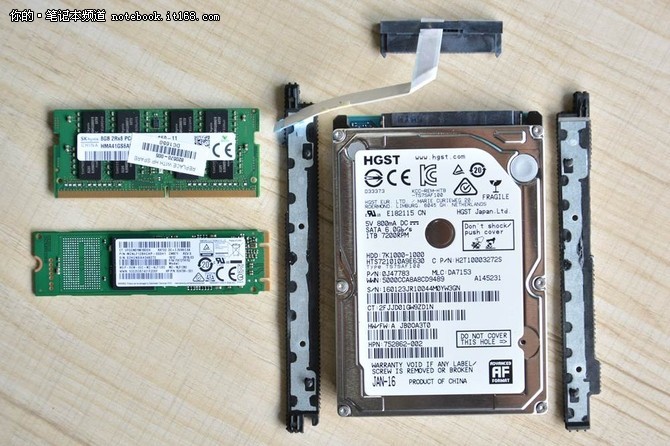

Memory, SSD, and mechanical hard disk
Double fan air cooling system

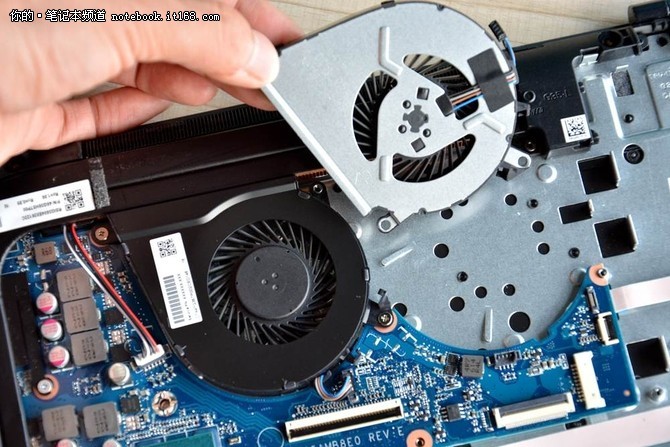

Double fan
Double brass heat conduction + heat sink

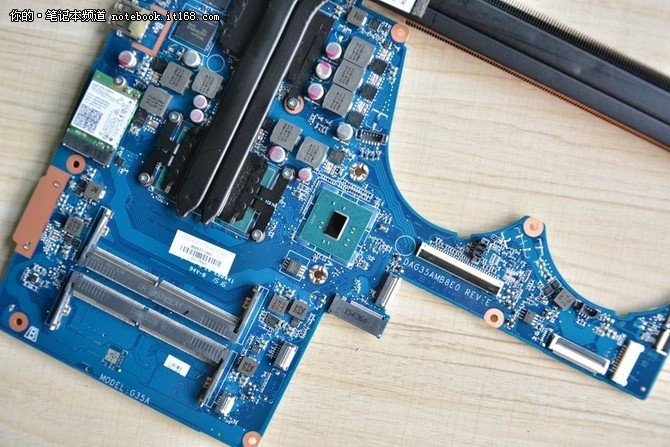

Motherboard

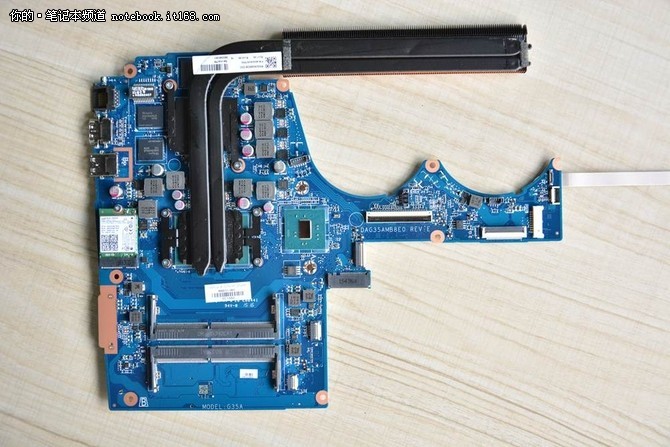

Motherboard

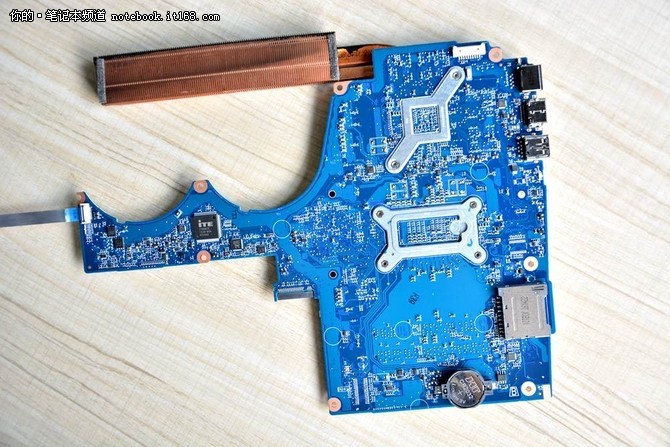

Motherboard back
Internal components

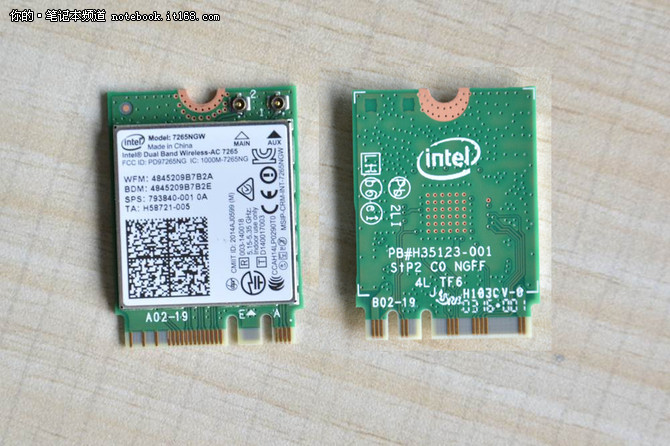

Wi-Fi module
Next we continue to dig deeper, dismantling the heat sink, and looking at the details of the processor and the discrete graphics section.
We disassembled this Hewlett-Packard WASD Shadow Elf II generation game which is equipped with Intel's sixth-generation processor i5-6300HQ processor, GTX 960M 2G DDR5 graphics card, 2GB GDDR5 memory.
The Core i5 6300HQ processor is based on the 14nm process technology, the core code name is Skylake-H, using a four-core four-thread design, the initial frequency of 2.3GHz, Core frequency to 3.2GHz, shared three-level cache is 6MB, the highest TDP (Power consumption) is 45W, minimum is 35W.
Open the heat pipe

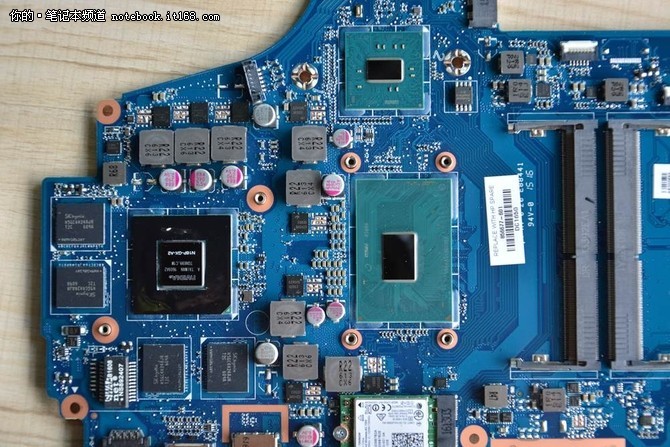

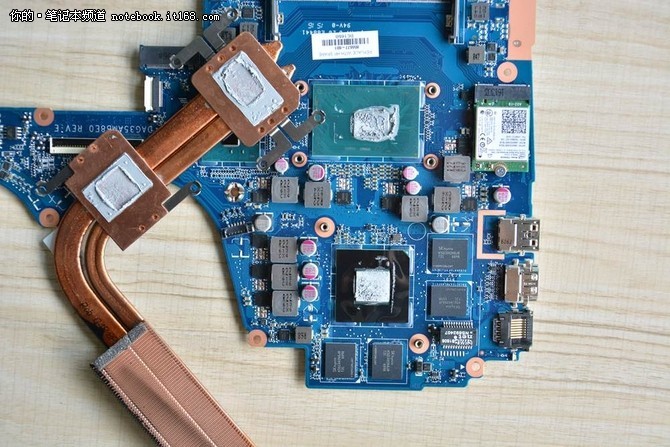

Graphics card and CPU
Hewlett-Packard WASD Shadow Wizard II generation game uses the NVIDIA GTX 960M graphics card, which uses GM107 Maxwell core, has 640 stream processors, the core frequency is 1097MHz, memory bit width 128bit, memory capacity 2GB, memory type is GDDR5.

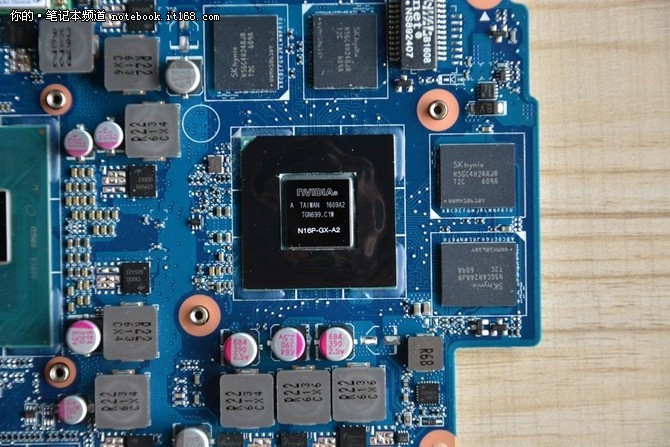

Discrete graphics and memory
There is also a small thing, Danish B&O sound double speakers. Since it is a game, it should not be too bad in sound effects, including audio and video entertainment.
Double speakers
Summary: Hewlett-Packard WASD Shadow Elf II generation game inherited the classics of the previous works, while improving performance, more optimization of the details, as well as the improvement of operating experience, through the appearance, we see the Hewlett-Packard WASD Shadow Wizard II generation game The polishing of this book is more sophisticated. I even think that it is not only exclusive for game players, but also suitable for office, learning, entertainment, etc. The evolution of the Hewlett-Packard WASD Shadow Elves II game titles is not overly publicized, but it is low-key and introverted, but In respect of user experience, we have to say that HP's machine is really sincere.
In terms of internal workmanship, this game, as always, inherited the style of HP's factory, and is very sophisticated in the production of plates. In the layout of accessories, alignments and other highlights are concise, optimized, due to the dismantling of the ease of operation, to meet the needs of users with upgrades, it can be said very intimate.
